Overview

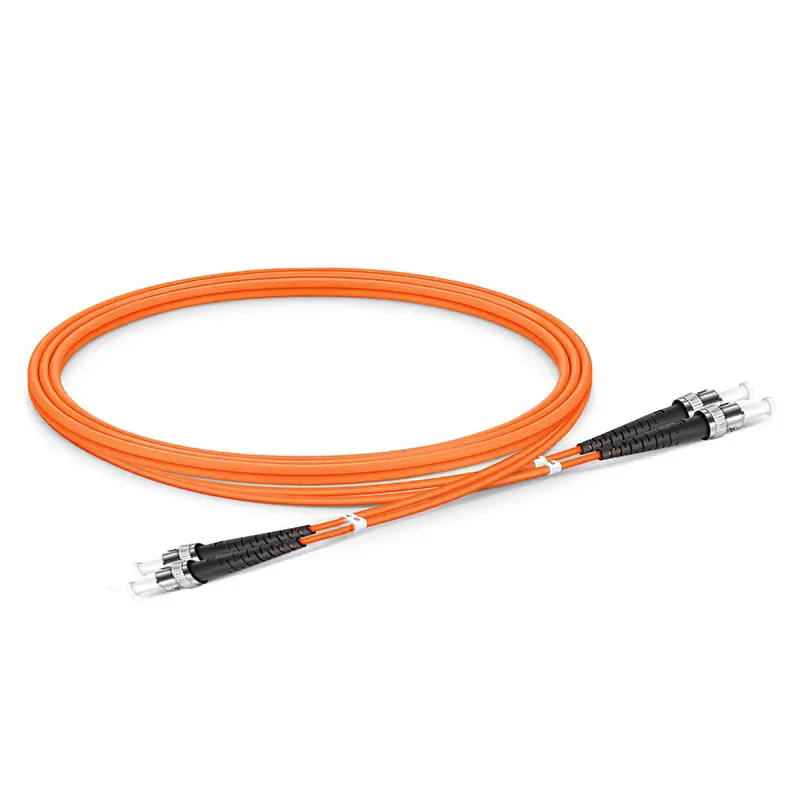

ST/PC-ST/PC Multimode (MM) DX OM2 50/125μm Patch Cord is a high-performance fiber optic solution designed for reliable data transmission in enterprise networks and industrial environments. Featuring rugged ST connectors with Physical Contact (PC) polish on both ends, this patch cord delivers secure bayonet-style connections that resist vibration and accidental disconnection - perfect for demanding applications in manufacturing plants and data centers.

Built with OM2-grade 50/125μm multimode fiber, this patch cord supports high-speed data transmission up to 550 meters for 1Gbps networks and 82 meters for 10Gbps applications. The durable ST connectors ensure stable performance in high-density patching environments, while the LSZH (Low Smoke Zero Halogen) jacket provides flame-retardant protection for both horizontal and vertical installations.

Compliant with TIA/EIA-568 and ISO/IEC standards, this solution offers superior performance for Gigabit Ethernet, storage area networks (SANs), and backbone applications. Its combination of reliable ST connectors and OM2 fiber performance makes it an excellent choice for network upgrades where mechanical durability and optical performance are equally important. The patch cord is particularly valued in industrial settings where vibration resistance is critical.

Features:
Low insertion loss and back reflection loss
Good Durability
Good exchangeability
High temperature stability
Standard: Telcordia GR-326-CORE

Applications:
CATV / Metro
Active device termination
Telecommunication networks
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)

Specifications:
Insertion Loss: Typical≦ 0.2dB, Maximum≦0.3dB
Return Loss :≧50dB (PC/UPC); ≧65dB (APC)
Repeatability: ≦0.1
Durability ≦0.2dB typical change, 1000 matings
Interchangeability: ≦0.2dB
Tensile Strength : >10kg
Operating Temperature: -40 ~ 85℃
