product name

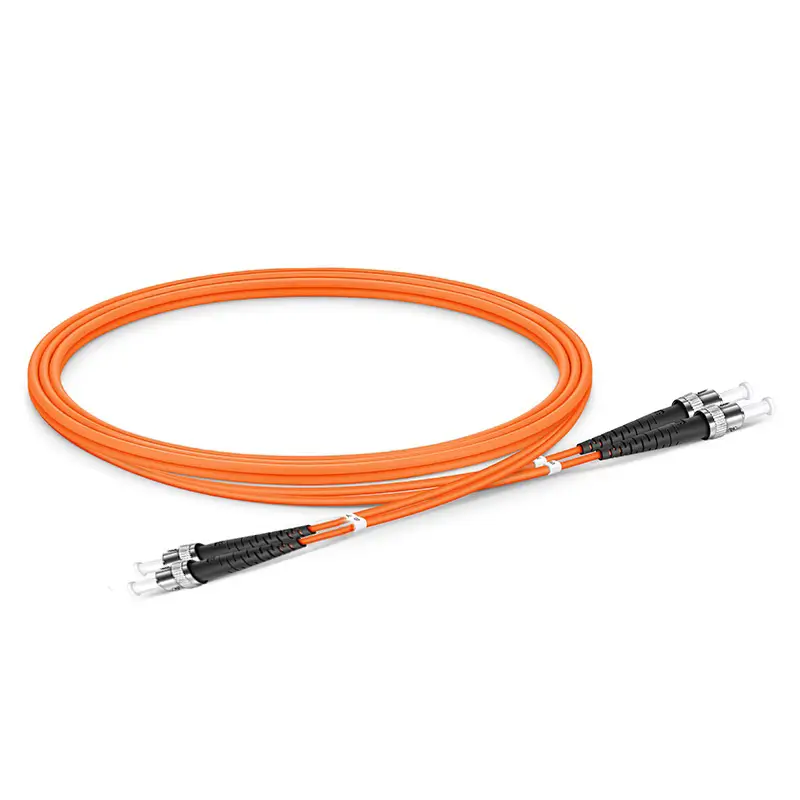

ST/PC-ST/PC MM DX OM1 62.5/125um PATCH CORD

Model: ST/PC-ST/PC

Data Rate:

Wavelength:

Distance:

Connector:

Fiber Type: MM

DDM:

Description: ST/PC-ST/PC Multimode (MM) DX OM1 62.5/125μm Patch Cord is a robust fiber optic solution designed for legacy network infrastructure and industrial applications.

Products Description

Overview

ST/PC-ST/PC Multimode (MM) DX OM1 62.5/125μm Patch Cord is a robust fiber optic solution designed for legacy network infrastructure and industrial applications. Featuring bayonet-style ST connectors with Physical Contact (PC) polish on both ends, this patch cord provides secure, twist-lock connections that are resistant to vibration and accidental disconnection - ideal for harsh environments and older network installations.

Constructed with OM1-grade 62.5/125μm multimode fiber, this patch cord supports reliable data transmission up to 275 meters at 1Gbps, making it suitable for traditional LAN, FDDI, and Fast Ethernet systems. The durable ST connectors ensure stable performance in high-vibration industrial settings, while the LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety for both horizontal and vertical cable runs.

Compliant with TIA/EIA-568 and ISO/IEC standards, this solution offers a cost-effective way to maintain and upgrade legacy 1Gbps networks in manufacturing plants, campus environments, and telecom central offices. Its combination of rugged ST connectors and OM1 fiber performance delivers dependable connectivity for applications where mechanical reliability is as important as optical performance.


Features:
Low insertion loss and back reflection loss
Good Durability
Good exchangeability
High temperature stability
Standard: Telcordia GR-326-CORE

Applications:
CATV / Metro
Active device termination
Telecommunication networks
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)

Specifications:
Insertion Loss: Typical≦ 0.2dB, Maximum≦0.3dB
Return Loss :≧50dB (PC/UPC); ≧65dB (APC)
Repeatability: ≦0.1
Durability ≦0.2dB typical change, 1000 matings
Interchangeability: ≦0.2dB
Tensile Strength : >10kg
Operating Temperature: -40 ~ 85℃
