Products Description
Overview

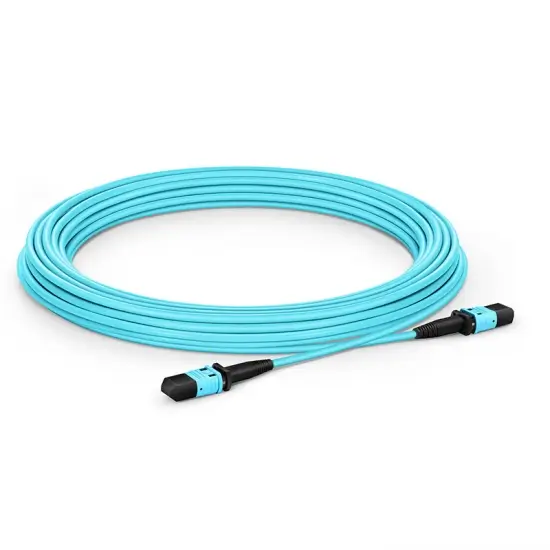

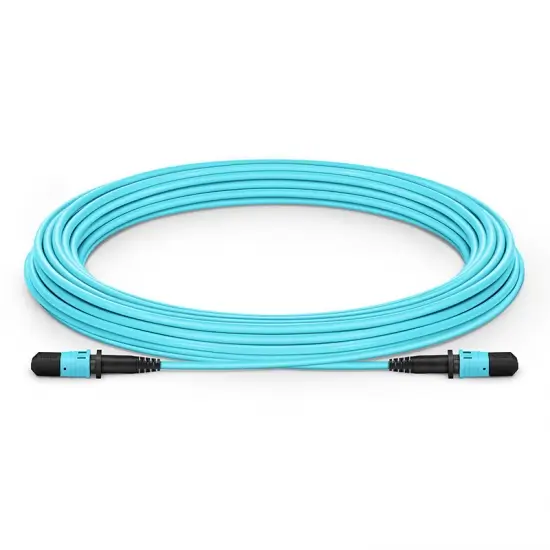

12 Fiber MPO(Male)-MPO(Male) OM3 50/125 Multi-mode Fiber Optic Cable is engineered for high-speed, high-density connectivity in next-generation network infrastructures. Featuring male MPO connectors on both ends, this cable directly interfaces with female MPO adapters or ports, enabling seamless integration in data centers, 40G/100G/400G Ethernet systems, and high-performance computing environments. Constructed with OM3-grade 50/125μm laser-optimized multi-mode fiber, it supports bandwidth-intensive applications up to 10Gbps over 300 meters and 40G/100G speeds at 100 meters, ensuring efficient data transmission with minimal attenuation.
The ruggedized male MPO connectors provide precise alignment and low insertion loss, enhancing signal reliability in demanding setups. Its push-pull design simplifies installation and maintenance in confined spaces, while the 12-fiber configuration supports parallel optics and high-channel-count systems like QSFP+/QSFP28 transceivers. Compliant with industry standards (TIA/EIA, IEC), this cable is ideal for backbone cabling, storage area networks (SANs), and cloud infrastructure, offering scalability, durability, and future-proof performance for evolving network demands.
Item Specifications:
| Connector | MPO to MPO | Gender | Female to Female |
| Fiber Mode | 50/125μm OM3 | Jacket OD | 3.0mm |
| Fiber Count | 12 | Wavelength | 850nm |
| Cable Length | 1m... | Jacket Color | Aqua |
| Cable Jacket | PVC/LSZH | Insertion Loss | <=0.6dB |
| Durability | >=500 times | Return Loss | >=20dB |
| Operate Temperature | -40~75°C | Is_customized | Yes |
Features:
Eliminate termination errors, Min installation time
Each cable is 100% tested for low insertion loss and back reflection
Optimized performance - Elite MPO and discrete premium connector
Support 40GBASE-SR4 in applicable parallel optics networks
Compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard
Applications:
Data Centers with High Density Requirement
Fiber Channel Storage
Parallel Processing Applications
Telecommunications and Backbone Installations
