Products Description
Overview

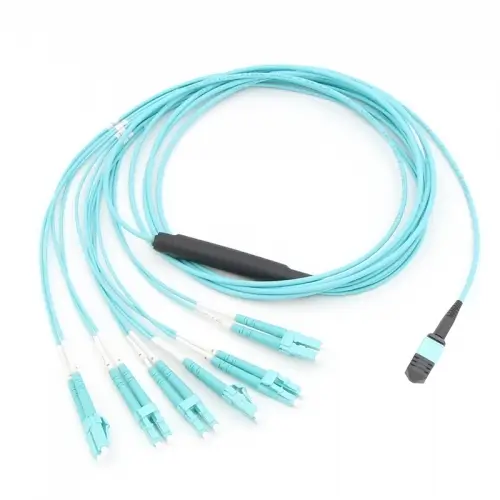

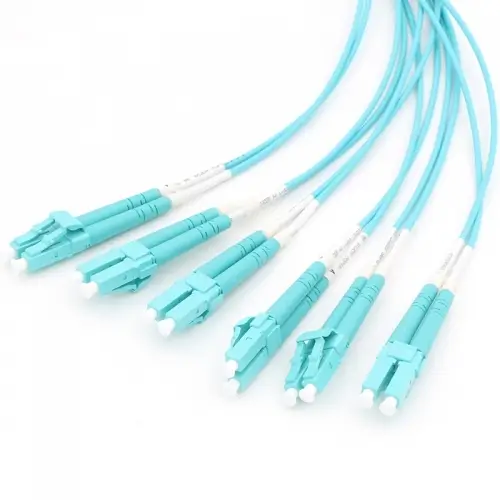

12 Fiber MPO-6LC Duplex OM3 Multi-mode Fiber Optic Harness Fan-out/Breakout Cable is a versatile solution designed to bridge high-density MPO connectivity with standard LC duplex interfaces. This cable integrates a single 12-fiber MPO connector on one end, fanning out into six LC duplex connectors on the other, enabling seamless transitions between 40G/100G/400G MPO-based systems and 10G SFP+ or LC-compatible devices. Built with OM3-grade 50/125μm laser-optimized multi-mode fiber, it supports high-speed data transmission up to 10Gbps over 300 meters and 40G/100G speeds at 100 meters, ensuring efficient performance in data centers, enterprise networks, and storage environments.
The ruggedized MPO connector and LC duplex terminals provide precise alignment, low insertion loss, and reliable signal integrity. Its breakout design simplifies cabling infrastructure by reducing adapter clutter and streamlining connections to switches, servers, or patch panels. Compliant with industry standards (TIA/EIA, IEC), this harness cable offers flexibility, durability, and scalability, making it ideal for high-density installations, parallel optics systems, and future-ready network upgrades.
Item Specifications:
| Connector A | MPO (Female) | Connector B | LC UPC (6) |
| Fiber Mode | 50/125μm OM3 | Cable Diameter | 3.0mm |
| Fiber Count | 12 | Wavelength | 850nm |
| Breakout Length | 0.5m... | Fiber Type | Duplex |
| Cable Jacket | PVC/LSZH | Insertion Loss | <=0.6dB |
| Jacket Color | Aqua | Return Loss | MTP>=20 dB, LC>=30dB |
| Operate Temperature | -40~75°C | Durability | >=500 times |
Features:
A single MPO connector on one end that breaks out into 4LC connectors
Designed to save front panel space and streamline fiber management
Support use in attaching directly to 40G transceivers
Compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard
Applications:
Data Centers with High Density Requirement
Fiber Channel Storage
Parallel Processing Applications
Telecommunications and Backbone Installations
