Products Description
Overview

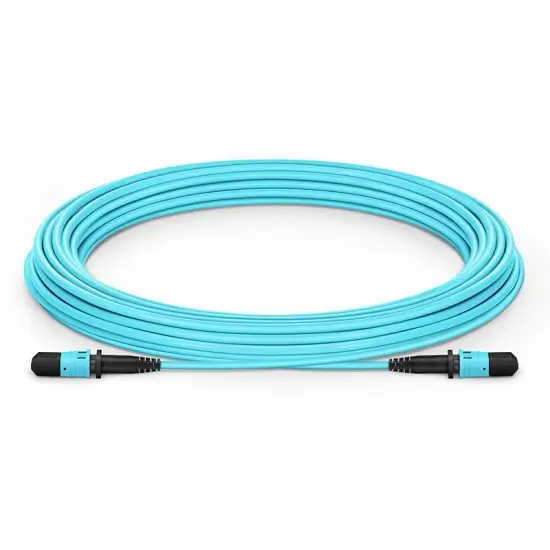

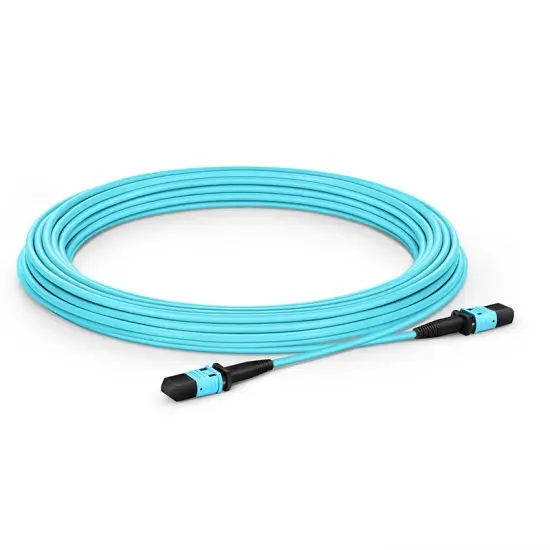

12 Fiber MPO(Female)-MPO(Female) OM3 50/125 Multi-mode Fiber Optic Cable is a high-capacity, high-performance solution tailored for next-generation data networks requiring rapid multi-channel communication. Designed with female MPO connectors on both ends, this cable seamlessly interfaces with MPO adapters or male connectors, ensuring secure, low-loss connections in high-density environments such as 40G/100G/400G Ethernet, hyperscale data centers, and enterprise backbone infrastructures. Built with OM3-grade 50/125μm multi-mode fiber, it supports bandwidth-intensive applications up to 10Gbps over 300 meters and 40G/100G speeds at 100 meters, leveraging laser-optimized cores for efficient light transmission.
The cable’s ruggedized MPO design guarantees precise alignment, minimizing insertion loss and maximizing signal integrity for reliable performance in demanding setups. Its push-pull mechanism simplifies installation and maintenance in confined spaces, while the OM3 fiber’s low attenuation ensures consistent data throughput. Ideal for high-speed interconnects, parallel optics systems, storage area networks (SANs), and cloud computing clusters, this 12-fiber solution adheres to industry standards (TIA/EIA, IEC) and offers scalability, durability, and future-proof flexibility for evolving network architectures.
Item Specifications:
| Connector | MPO to MPO | Gender | Female to Female |
| Fiber Mode | 50/125μm OM3 | Jacket OD | 3.0mm |
| Fiber Count | 12 | Wavelength | 850nm |
| Cable Length | 1m.... | Jacket Color | Aqua |
| Cable Jacket | PVC/LSZH | Insertion Loss | <=0.6dB |
| Durability | >=500 times | Return Loss | >=20dB |
| Operate Temperature | -40~75°C | Is_customized | Yes |
Features:
Eliminate termination errors, Min installation time
Each cable is 100% tested for low insertion loss and back reflection
Optimized performance - Elite MPO and discrete premium connector
Support 40GBASE-SR4 in applicable parallel optics networks
Compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard
Applications:
Data Centers with High Density Requirement
Fiber Channel Storage
Parallel Processing Applications
Telecommunications and Backbone Installations
