Overview

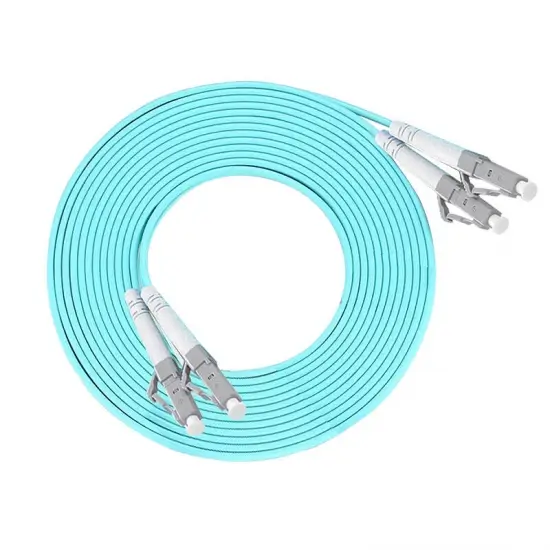

LC/PC-LC/PC Multimode (MM) DX OM3 50/125μm Patch Cord is a high-performance fiber optic solution designed for modern high-bandwidth applications in data centers and enterprise networks. Featuring compact LC connectors with Physical Contact (PC) polish on both ends, this patch cord ensures low insertion loss and high return loss, making it ideal for 10Gbps, 40Gbps, and even 100Gbps Ethernet networks.

Constructed with OM3-grade 50/125μm laser-optimized multimode fiber, it supports high-speed data transmission up to 300 meters for 10Gbps and 100 meters for 40/100Gbps applications. The small form-factor LC connectors enable high-density installations in switches and patch panels, while the durable LSZH (Low Smoke Zero Halogen) jacket provides safety and flexibility for both rack-mounted and horizontal cabling.

Compliant with TIA/EIA-568 and ISO/IEC 11801 standards, this patch cord delivers reliable performance in data centers, storage area networks (SANs), and high-performance computing environments. Its combination of OM3 fiber bandwidth and LC connector efficiency makes it an excellent choice for future-proof network infrastructure upgrades.

Features:
Low insertion loss and back reflection loss
Good Durability
Good exchangeability
High temperature stability
Standard: Telcordia GR-326-CORE

Applications:
CATV / Metro
Active device termination
Telecommunication networks
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)

Specifications:
Insertion Loss: Typical≦ 0.2dB, Maximum≦0.3dB
Return Loss :≧50dB (PC/UPC); ≧65dB (APC)
Repeatability: ≦0.1
Durability ≦0.2dB typical change, 1000 matings
Interchangeability: ≦0.2dB
Tensile Strength : >10kg
Operating Temperature: -40 ~ 85℃
