Products Description
Overview

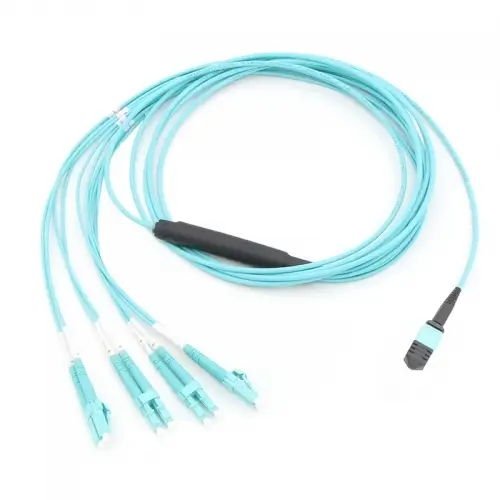

8 Fiber MPO-4LC Duplex OM3 Multi-mode Fiber Optic Harness Fan-out/Breakout Cable is a high-density solution designed to seamlessly integrate MPO-based high-speed systems with LC duplex infrastructure. This cable features an 8-fiber MPO connector on one end, branching into four LC duplex connectors on the other, enabling efficient connectivity between 40G/100G MPO trunk lines (e.g., QSFP+ transceivers) and 10G SFP+ devices or LC-compatible switches in data centers, enterprise networks, and storage environments. Built with OM3 50/125μm laser-optimized multi-mode fiber, it supports 10Gbps speeds up to 300 meters and 40G/100G transmission at 100 meters, ensuring reliable performance for bandwidth-intensive applications.
The MPO connector ensures precise alignment and low insertion loss, while the LC duplex ends provide standardized compatibility with existing network equipment. Its breakout design simplifies cabling infrastructure by reducing adapter use and minimizing clutter in high-density setups. Compliant with industry standards (TIA/EIA, IEC), this harness cable offers durability, flexibility, and scalability, making it ideal for cloud computing, parallel optics, and future-ready network upgrades. The streamlined design enhances installation efficiency and optimizes space utilization, delivering a cost-effective solution for modern, high-performance connectivity demands.
Item Specifications:
| Connector A | MPO (Female) | Connector B | LC UPC (4) |
| Fiber Mode | 50/125μm OM3 | Cable Diameter | 3.0mm |
| Fiber Count | 8 | Wavelength | 850nm |
| Breakout Length | 0.5m | Fiber Type | Duplex |
| Cable Jacket | PVC | Insertion Loss | <=0.6dB |
| Jacket Color | Aqua | Return Loss | MTP>=20 dB, LC>=30dB |
| Operate Temperature | -40~75°C | Durability | >=500 times |
Features:

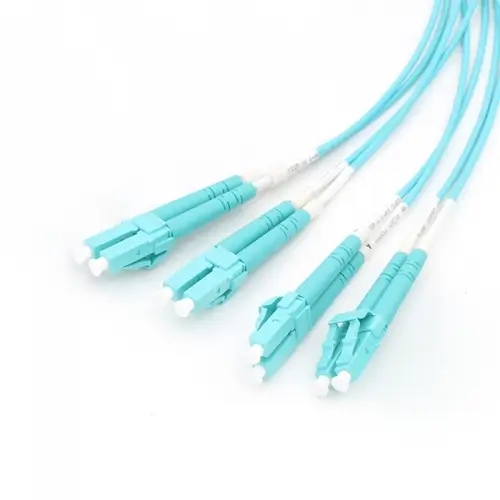

A single MPO connector on one end that breaks out into 4LC connectors
Designed to save front panel space and streamline fiber management
Support use in attaching directly to 40G transceivers
Compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard
Applications:
Data Centers with High Density Requirement
Fiber Channel Storage
Parallel Processing Applications
Telecommunications and Backbone Installations
