Products Description
Overview

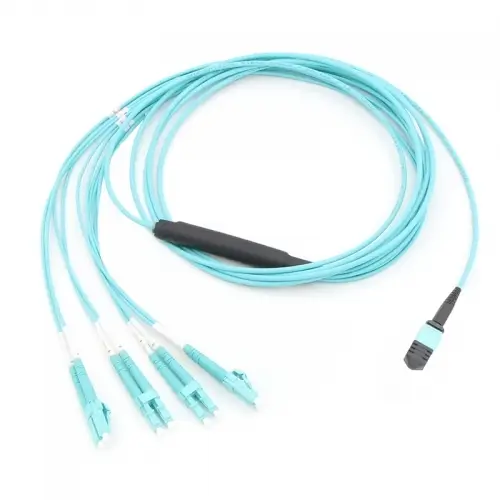

8 Fiber MPO(Male)-4LC Duplex OM3 Multi-mode Fiber Optic Harness Fan-out/Breakout Cable is a high-density, versatile solution designed to bridge 40G/100G MPO trunk lines with 10G LC duplex infrastructure. Featuring a male 8-fiber MPO connector on one end and four LC duplex connectors on the other, this cable seamlessly connects high-speed QSFP+/QSFP28 transceivers to SFP+ devices, switches, or servers in data centers, enterprise networks, and storage systems. Constructed with OM3 50/125μm laser-optimized multi-mode fiber, it supports 10Gbps transmission up to 300 meters and 40G/100G speeds at 100 meters, ensuring reliable performance for bandwidth-intensive applications.
The ruggedized MPO(Male) connector provides direct, secure mating with female MPO adapters, minimizing insertion loss and maintaining signal integrity. The LC duplex ends offer standardized compatibility with existing network equipment, while the breakout design simplifies cabling by eliminating intermediate adapters and reducing clutter in high-density racks. Compliant with TIA/EIA and IEC standards, this harness cable combines durability, flexibility, and scalability, making it ideal for cloud infrastructure, parallel optics, and future-ready network upgrades. Its streamlined structure optimizes space utilization and installation efficiency, delivering a cost-effective solution for modern high-performance connectivity demands.
Item Specifications:
| Connector A | MPO (Female) | Connector B | LC UPC (4) |
| Fiber Mode | 50/125μm OM3 | Cable Diameter | 3.0mm |
| Fiber Count | 8 | Wavelength | 850nm |
| Breakout Length | 0.5m | Fiber Type | Duplex |
| Cable Jacket | PVC | Insertion Loss | <=0.6dB |
| Jacket Color | Aqua | Return Loss | MTP>=20 dB, LC>=30dB |
| Operate Temperature | -40~75°C | Durability | >=500 times |
Features:

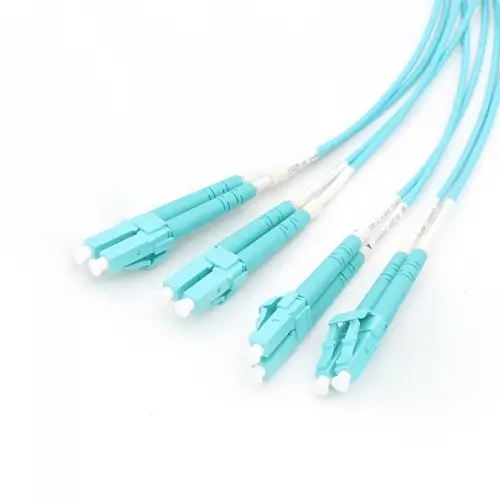

A single MPO connector on one end that breaks out into 4LC connectors
Designed to save front panel space and streamline fiber management
Support use in attaching directly to 40G transceivers
Compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard
Applications:
Data Centers with High Density Requirement
Fiber Channel Storage
Parallel Processing Applications
Telecommunications and Backbone Installations
