Overview

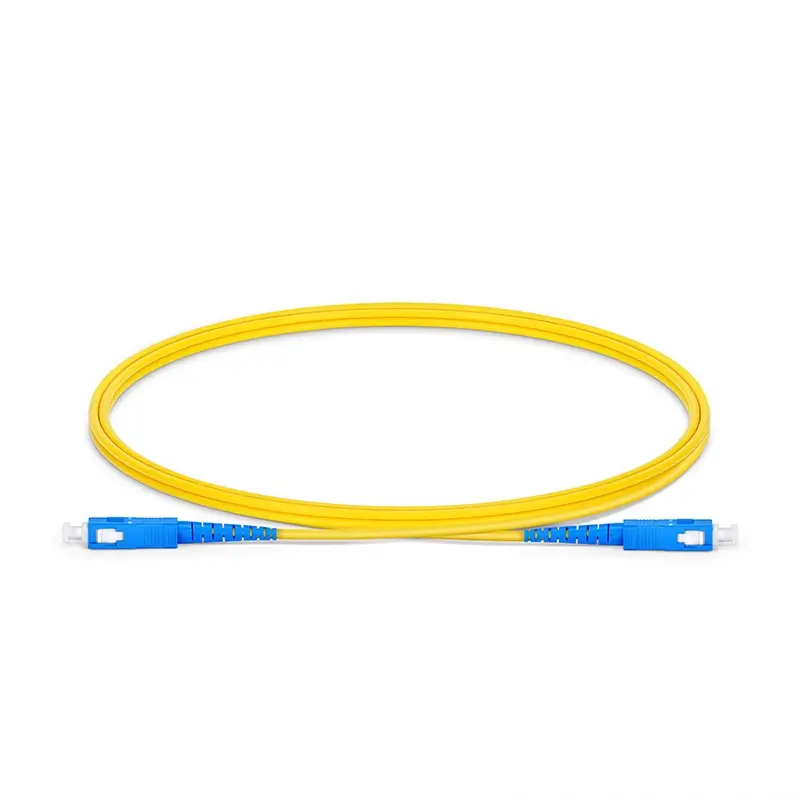

SC/UPC-SC/UPC SM SX OS2 9/125μm Patch Cord is a high-performance single-mode fiber optic cable designed for reliable, low-loss connectivity in long-haul and high-speed communication networks. Featuring SC/UPC connectors on both ends, this patch cord ensures precise alignment and minimal signal reflection, making it ideal for telecom backbone systems, data center interconnects, and FTTx (Fiber-to-the-X) applications. Constructed with OS2-grade 9/125μm single-mode fiber, it supports transmission speeds up to 10G/40G/100G and beyond, operating efficiently at 1310nm and 1550nm wavelengths for extended distances with minimal attenuation.

The UPC (Ultra Physical Contact) polished connectors achieve ultra-low insertion loss (<0.3dB) and high return loss (>55dB), ensuring superior signal integrity for critical infrastructure. Its bend-insensitive fiber design enhances durability in tight installations, while the compact SC connector form factor optimizes space efficiency in high-density environments. Compliant with ITU-T G.652, TIA/EIA, and IEC standards, this patch cord delivers robust performance, scalability, and future-proof reliability for metro networks, cloud services, and 5G deployments. Engineered for demanding applications, it combines precision, durability, and low latency to meet the needs of next-generation optical communication systems.

Features

Low insertion loss and back reflection loss

Good Durability

Good exchangeability

High temperature stability

Standard: Telcordia GR-326-CORE

compact design

IEC,JIS,TELCORDIA-326 compliance
