Overview

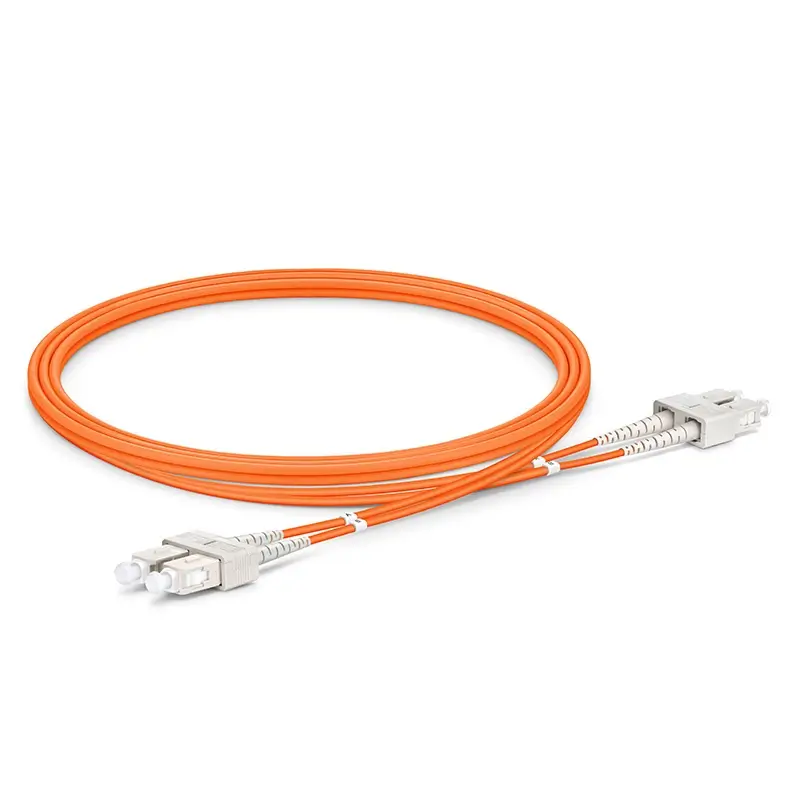

SC/PC-SC/PC Multimode (MM) DX OM2 50/125μm Patch Cord is a high-performance fiber optic solution designed for reliable short-to-medium range data transmission in modern network environments. Featuring standard SC connectors with Physical Contact (PC) polish on both ends, this patch cord delivers excellent optical performance with low insertion loss, making it ideal for applications including Gigabit Ethernet, data center interconnects, and campus backbone networks.

Constructed with OM2-grade 50/125μm multimode fiber, this patch cord supports high-speed data transmission up to 550 meters for 1Gbps networks and 82 meters for 10Gbps applications. The durable SC connectors provide secure push-pull coupling for stable connections, while the high-quality LSZH (Low Smoke Zero Halogen) jacket ensures safety and flexibility for both rack-mounted and horizontal cabling installations.

Compliant with TIA/EIA-568, ISO/IEC 11801 and other industry standards, this patch cord offers reliable performance in enterprise networks, storage area networks (SANs), and telecom systems. Its combination of proven SC connector design and OM2 fiber performance makes it a cost-effective solution for network upgrades and expansions in demanding environments.

Features

Low insertion loss and back reflection loss

Good Durability

Good exchangeability

High temperature stability

Standard: Telcordia GR-326-CORE

compact design

IEC,JIS,TELCORDIA-326 compliance
