Products Description

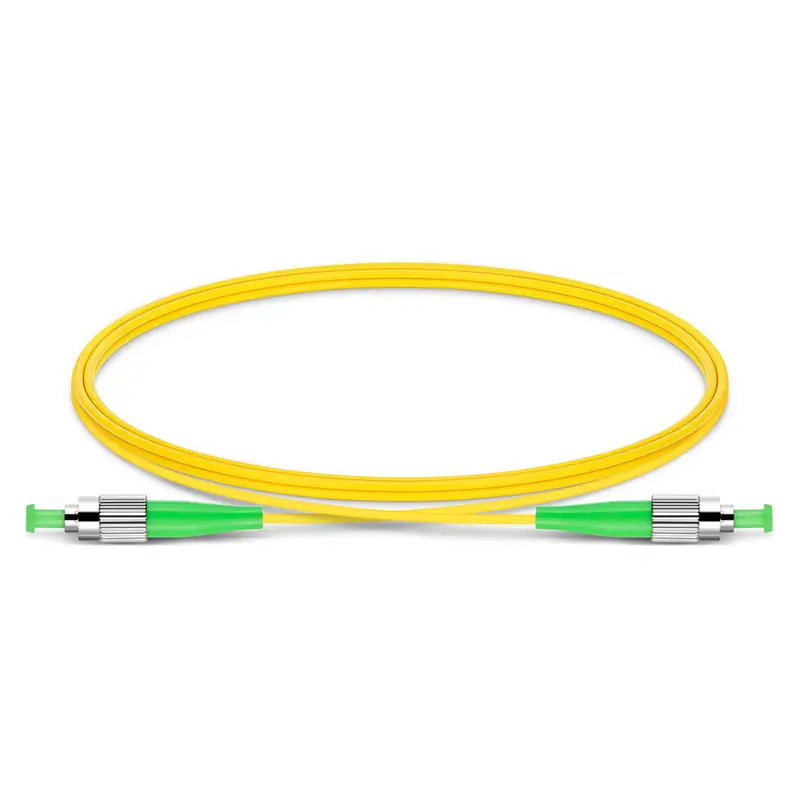

FC/APC-FC/APC Simplex OS2 9/125 SMF Fiber Patch Cable
Overview
FC/APC-FC/APC Single-Mode (SM) SX OS2 9/125μm Patch Cord is a robust fiber optic solution engineered for high-performance, low-reflection connectivity in critical communication systems. Equipped with FC/APC connectors on both ends, it features Angled Physical Contact (APC) polishing to minimize back reflections and ensure superior signal integrity, making it ideal for applications like telecommunications, CATV, and high-speed data networks where precision and stability are paramount.
Built with OS2-grade single-mode fiber (9/125μm), this patch cord supports long-haul transmission distances exceeding 10 km and operates efficiently at wavelengths of 1310nm and 1550nm. The durable FC connectors, known for their threaded coupling mechanism, provide secure, vibration-resistant connections in harsh environments, while the LSZH (Low Smoke Zero Halogen) jacket enhances safety and durability for both indoor and outdoor deployments.
Compliant with IEC, Telcordia, and ISO standards, this patch cord guarantees reliability in data centers, military installations, and industrial networks. Its APC connectors and low insertion loss ensure optimal performance in high-precision setups, and the rugged design caters to demanding scenarios requiring long-term stability. A cost-effective choice for maintaining high signal quality over extended distances.
Item Specifications:
| Connector | FC to FC | Polish | APC to APC |
| Fiber Mode | OS2 9/125μm SM | Jacket OD | 2.0mm; 3.0mm |
| Fiber type | Simplex | Wavelength | 1310/1550nm |
| Cable Length | 1m... | Jacket Color | Yellow |
| Cable Jacket | PVC/LSZH | Repeatability | <=0.1dB |
| Insertion Loss | <=0.3dB | Durability | <=0.2dB(1000 Times mating) |
| Return Loss | >=50dB | Operate Temperature | -40~75°C |
Features:
Low insertion loss and back reflection loss
Good Durability
Good exchangeability
High temperature stability
Standard: Telcordia GR-326-CORE
compact design
IEC,JIS,TELCORDIA-326 compliance
Applications:
CATV / Metro
Active device termination
Telecommunication networks
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)
Specifications:
Insertion Loss: Typical≦ 0.2dB, Maximum≦0.3dB
Return Loss :≧50dB (PC/UPC); ≧65dB (APC)
Repeatability: ≦0.1
Durability ≦0.2dB typical change, 1000 matings
Interchangeability: ≦0.2dB
Tensile Strength : >10kg
Operating Temperature: -40 ~ 85℃
Description:
The 9/125um single mode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
velolan supply various kinds of Single Mode and Multimode Fiber Optic Loopback Cables, which are with different connectors including ST, SC, FC, LC, MU, MTRJ etc. Each cable is functionally tested before shipping and is covered by a lifetime warranty.
How to choose correctly the cable jacket: PVC, LSZH or OFNP?
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks, campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.
The features of PVC, LSZH and OFNP Jacket are as follows:
PVC cable resistant to oxidation and degradation, it is commonly used for horizontal runs from the wiring center.
LSZH cable has a special flam-retardant coating, it is between floors in a building.
OFNP cable is space within the building created by building components, design for the movement of air. It is usually work for vertical runs beween floors.
How to Choose The Right Fiber Optic Cable Type on OM3 or OM4?
The difference of OM4 and OM3 fiber mode as the following
OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
The effective modal bandwidth for OM4 is more than double that of OM3.
For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
Fiber Optic Patch Cables:
Velolan offers high quality fiber cable assemblies such as Patch Cords, Pigtails, Breakout Cables etc. All of our fiber cables can be ordered as Single Mode 9/125, Multimode 62.5/125 OM1, Multimode 50/125 OM2 and Multimode 10 Gig 50/125 OM3/OM4 fibers.
velolan also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc. Please feel free to contact info@x-fibernet.com.
