Overview

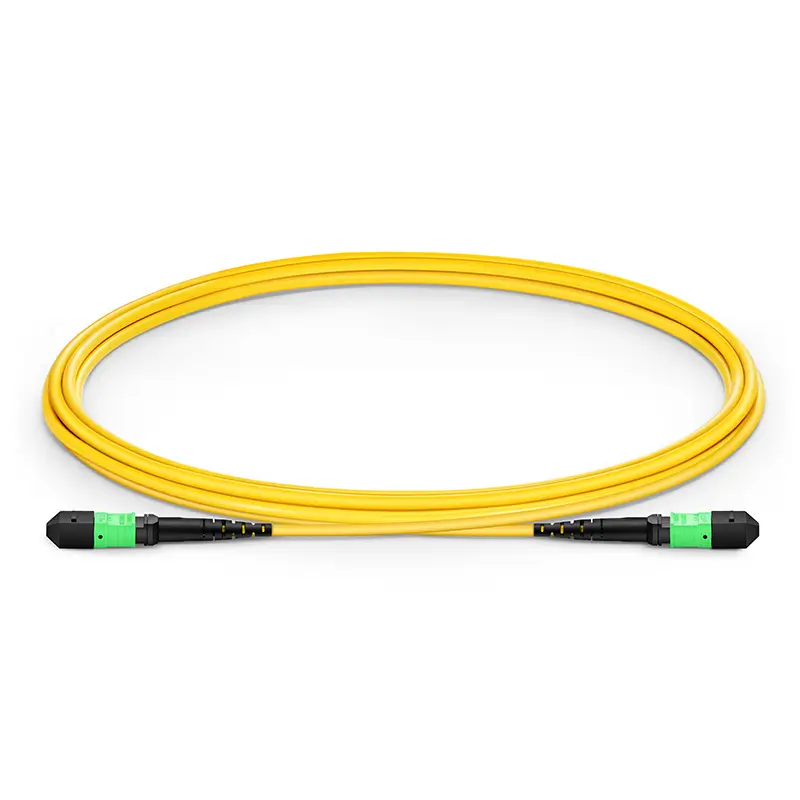

12 Fiber MPO(Female)-MPO(Female) 9/125 Single-mode Fiber Optic Cable is engineered for high-capacity, long-haul data transmission in mission-critical network environments. Featuring female MPO connectors on both ends, this cable seamlessly interfaces with MPO adapters or male connectors, making it ideal for high-density applications such as data center interconnects, telecom backbone networks, and 5G infrastructure. Built with 9/125μm single-mode fiber, it supports ultra-high-speed transmission up to 100G/400G and beyond, achieving extended distances of tens of kilometers using 1310nm or 1550nm wavelengths with minimal signal attenuation.

The ruggedized MPO(Female) connectors ensure precise alignment and low insertion loss, while the laser-optimized single-mode fiber core guarantees superior signal integrity and reduced dispersion for latency-sensitive applications. Its bend-insensitive design enhances durability in tight installations, and the push-pull mechanism simplifies deployment in confined spaces. Compliant with ITU-T G.652, TIA/EIA, and IEC standards, this cable delivers future-proof scalability, exceptional reliability, and low latency, making it a cornerstone for cloud services, metropolitan area networks (MANs), and next-gen optical systems requiring high-capacity, long-distance connectivity.

Features

Eliminate termination errors, Min installation time

Each cable is 100% tested for low insertion loss and back reflection

Optimized performance - Elite MPO and discrete premium connector

Support 40G PLRL4 PSM in applicable parallel optics networks

Compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard
