Overview

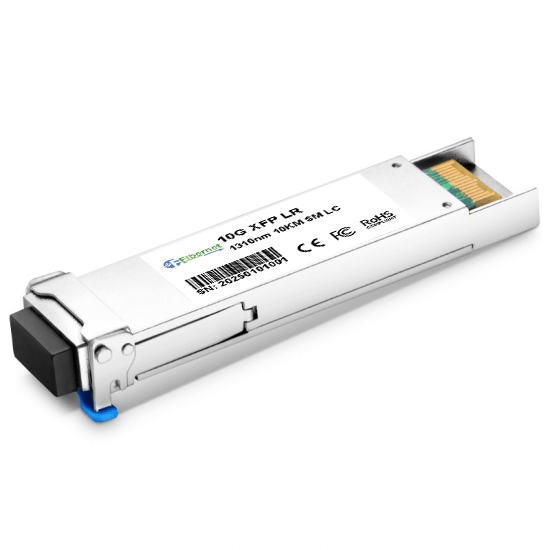

10G XFP LR 1310nm optical transceiver is a high-performance, hot-swappable module designed for 10 Gigabit Ethernet (10GbE) and telecommunications applications. Operating at a wavelength of 1310nm over single-mode fiber (SMF), it supports data transmission distances up to 10 kilometers, making it ideal for long-range connectivity in data centers, enterprise networks, and metro networks. Compliant with IEEE 802.3ae and XFP MSA standards, this transceiver ensures reliable interoperability with major networking equipment brands.

Featuring an LC duplex interface, it delivers low power consumption and high signal integrity, while Digital Diagnostics Monitoring (DDM/DOM) enables real-time performance tracking. Its compact XFP form factor supports flexible deployment in high-density environments. Built for extended temperature ranges (commercial or industrial), this module offers robust performance in demanding conditions. A cost-effective solution for 10G LR applications, it combines durability, efficiency, and plug-and-play simplicity for seamless network upgrades.

Features

Hot-pluggable XFP footprint

Supports 9.95Gb/s to 11.3Gb/s bit rates

XFI Loopback Mode

RoHS-6 Compliant (lead-free)

Power dissipation <1.5W

Case temperature range: -5°C to 70°C

Maximum link length of 10km

Uncooled 1310nm DFB laser

Full Duplex LC connector

No Reference Clock required

Built-in digital diagnostic functions

Standard bail release mechanism
