Overview

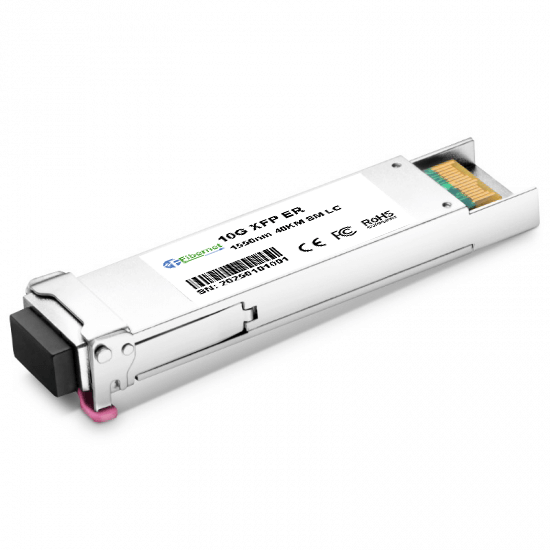

10G XFP ER 1550nm optical transceiver is a high-performance, hot-swappable module designed for extended-reach 10 Gigabit Ethernet (10GbE) and telecom applications. Operating at a wavelength of 1550nm over single-mode fiber (SMF), it achieves transmission distances up to 40 kilometers, making it ideal for metro networks, long-haul data links, and cross-campus connectivity. Compliant with IEEE 802.3ae 10GBASE-ER and XFP MSA standards, it ensures seamless interoperability with mainstream networking hardware.

Equipped with an LC duplex interface, this transceiver maintains high signal integrity and low power consumption while supporting Digital Diagnostics Monitoring (DDM/DOM) for real-time performance management. Its compact XFP form factor enables flexible integration in high-density environments. Built for industrial temperature ranges (-40°C to 85°C), it delivers reliable operation in harsh conditions. Offering robust performance, plug-and-play compatibility, and cost-effective scalability, this module is a dependable solution for high-speed, long-distance 10G networks.

Features

XFP MSA Rev 4.5 Compliant

Data rate from 9.95Gbps to 11.3Gbps

No Reference Clock required

Cooled 1550nm EML and PIN receiver

link length up to 40km

+1.8V,+3.3V,+5V Supply Voltage

Low Power Dissipation 3.5W Maximum

XFI and lineside loopback Mode Supported

-5ºC to 70ºC Operating Case Temperature

Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power

RoHS6 compliant (lead free)
