Overview

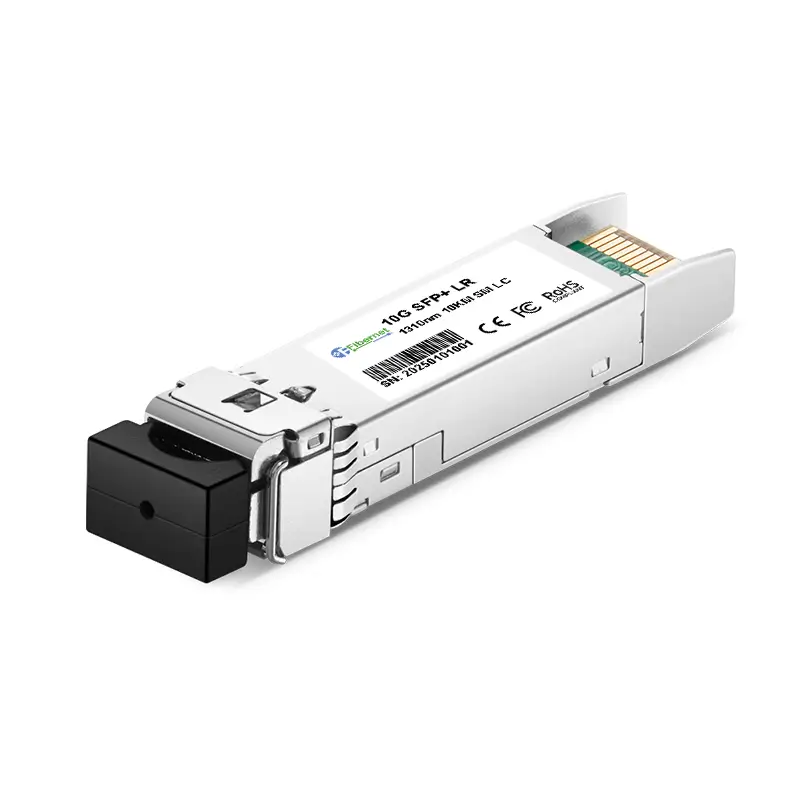

10G SFP+ LR 1310nm 20KM LC Optical Transceiver is a high-speed, hot-swappable optical module designed for 10 Gigabit Ethernet and fiber channel networks.

Operating at a wavelength of 1310nm, it supports long-distance data transmission up to 20 kilometers over single-mode fiber (SMF), making it ideal for metro networks, data center interconnects, and telecom backbone applications. Compliant with IEEE 802.3ae 10GBASE-LR standards and SFF-8431 specifications, this transceiver ensures seamless compatibility with mainstream networking equipment.

Equipped with an LC duplex interface, it delivers exceptional signal integrity, low power consumption, and advanced digital diagnostics monitoring (DDM) for real-time performance management. The compact SFP+ form factor and extended operating temperature range (-40°C to 85°C) enable deployment in harsh environments. Combining reliability, scalability, and energy efficiency, this transceiver is a cost-effective solution for high-bandwidth, long-haul optical connectivity.

Features

Optical interface compliant to IEEE 802.3ae 10GBASE-LR

Electrical interface compliant to SFF-8431

Hot Pluggable

1310nm DFB transmitter, PIN photo-detector

Operating case temperature: 0 to 70 °C

Low power consumption

Applicable for 10km SMF connection

All-metal housing for superior EMI performance

Advanced firmware allow customer system encryption information to be stored in transceiver

Cost effective SFP+ solution, enables higher port densities and greater bandwidth

RoHS6 compliant (lead free) Case operating temperature range: -5°C to 70℃
