Overview

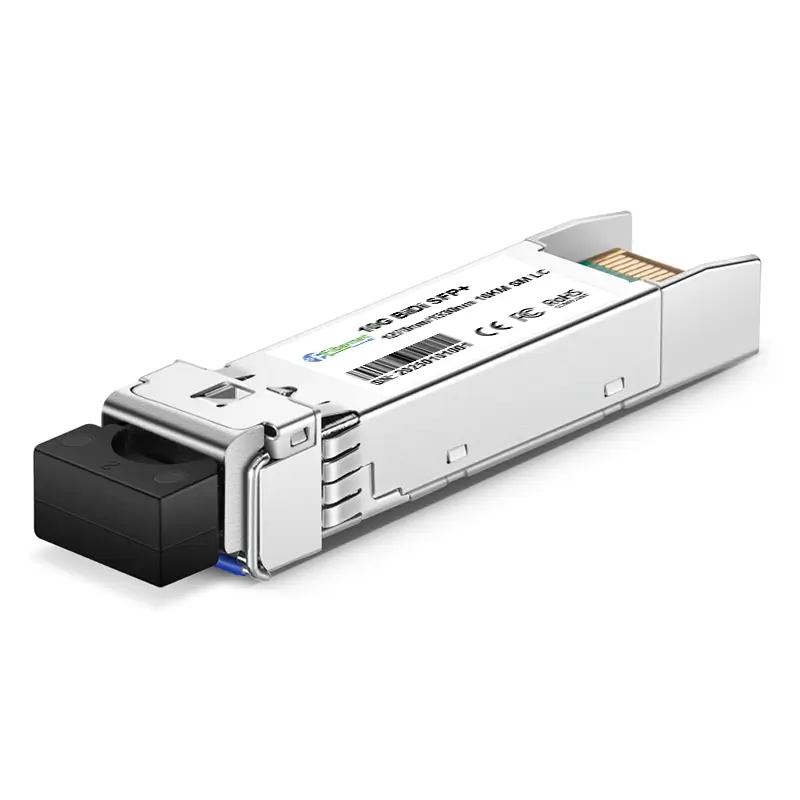

10G BiDi SFP+ 1270nm/1330nm 10KM LC Optical Transceiver is a compact, bidirectional optical module designed for 10 Gigabit Ethernet and fiber channel applications.

Utilizing wavelength-division duplexing (WDD), it transmits and receives data over a single strand of single-mode fiber (SMF) via 1270nm (Tx) and 1330nm (Rx) wavelengths, enabling efficient fiber utilization and cost savings. Supporting distances up to 10 kilometers, it is ideal for metro access, enterprise networks, and data center interconnects. Compliant with IEEE 802.3 standards and SFF-8472 specifications, the transceiver ensures seamless compatibility with industry-leading network devices.

Featuring an LC connector, it delivers low power consumption, high signal integrity, and integrated Digital Diagnostics Monitoring (DDM) for real-time performance management. With a robust operating temperature range (-40°C to 85°C) and hot-swappable SFP+ design, this transceiver offers a reliable, space-saving solution for high-speed, bidirectional optical connectivity in fiber-constrained environments.

Features

Supports 9.95Gb/s to 10.3Gb/s data rates

Simplex LC Connector Bi-Directional SFP+ Optical Transceiver

Single 3.3V Supply

Up to 20KM on 9/125um SMF

A:1270nm DFB Laser transmitter,1330nm receiver

B:1330nm DFB Laser transmitter,1270nm receiver

Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW

SFP+ MSA SFF-8431 Compliant

Digital Diagnostic SFF-8472 Compliant

RoHS compliant and Lead Free

Operating case temperature: Standard: 0 ~ 70 °C
