Overview

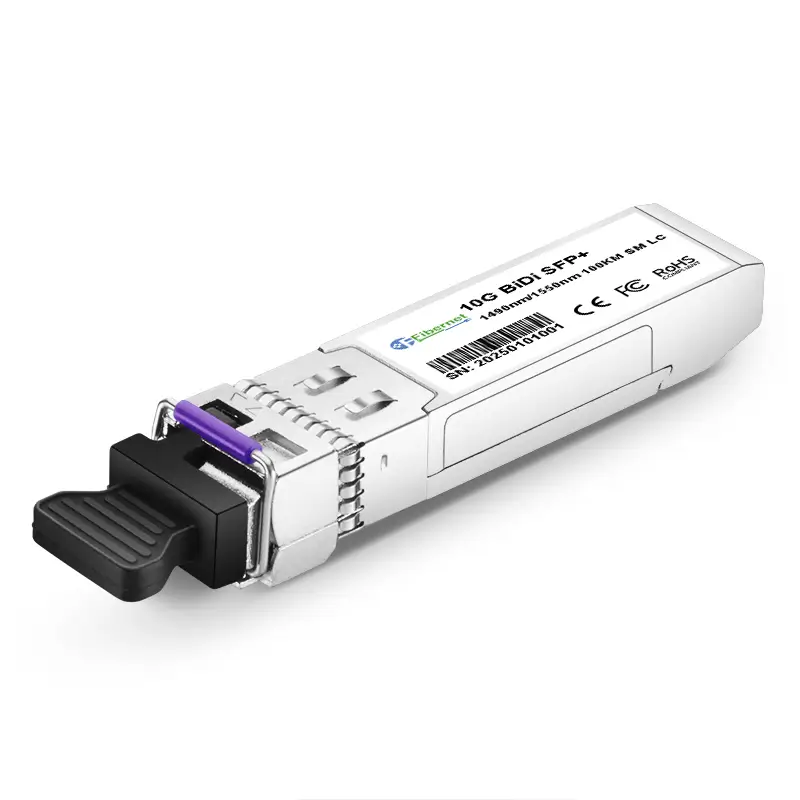

10G BiDi SFP+ 1490nm/1550nm 100KM LC Optical Transceiver is an ultra-long-haul bidirectional module designed for 10 Gigabit Ethernet and fiber channel networks.

Utilizing advanced wavelength-division duplexing (WDD) technology, it enables bidirectional communication over a single strand of single-mode fiber (SMF) by transmitting at 1490nm and receiving at 1550nm, maximizing fiber efficiency and significantly reducing infrastructure costs. Supporting extended reach up to 100 kilometers, it is ideal for metro/core networks, cross-regional backbone systems, and large-scale telecom applications requiring high-capacity, long-distance connectivity. Compliant with IEEE 802.3 standards and SFF-8472 specifications, the module ensures seamless compatibility with industry-standard networking equipment.

Featuring an LC interface, it delivers low power consumption, exceptional signal integrity, and integrated Digital Diagnostics Monitoring (DDM) for real-time performance management and fault detection. Built to withstand harsh environments with an industrial temperature range (-40°C to 85°C) and a hot-swappable SFP+ form factor, this transceiver offers a reliable, space-saving solution for high-speed, ultra-long-haul bidirectional communication in fiber-constrained or cost-sensitive deployments, combining scalability, durability, and operational efficiency.

Features

Up to 11.1Gb/s data rate

1490nm EML laser and APD receiver for

1550nm EML laser and APD receiver for

2-wire interface with integrated Digital Diagnostic monitoring

Up to 100km transmission on SMF

BIDI LC optical connector

Single +3.3V power supply

RoHS-10 compliant and lead-free

Compliant with SFF+MSA and SFF-8472

Maximum power consumption 1.8W

Metal enclosure, for lower EMI

Meet ESD requirements, resist 8KV direct contact voltage

Operating case temperature

Commercial: 0 ~ +70℃

Extended: -10 ~ +80℃

Industrial: -40 ~ +85℃
