Overview

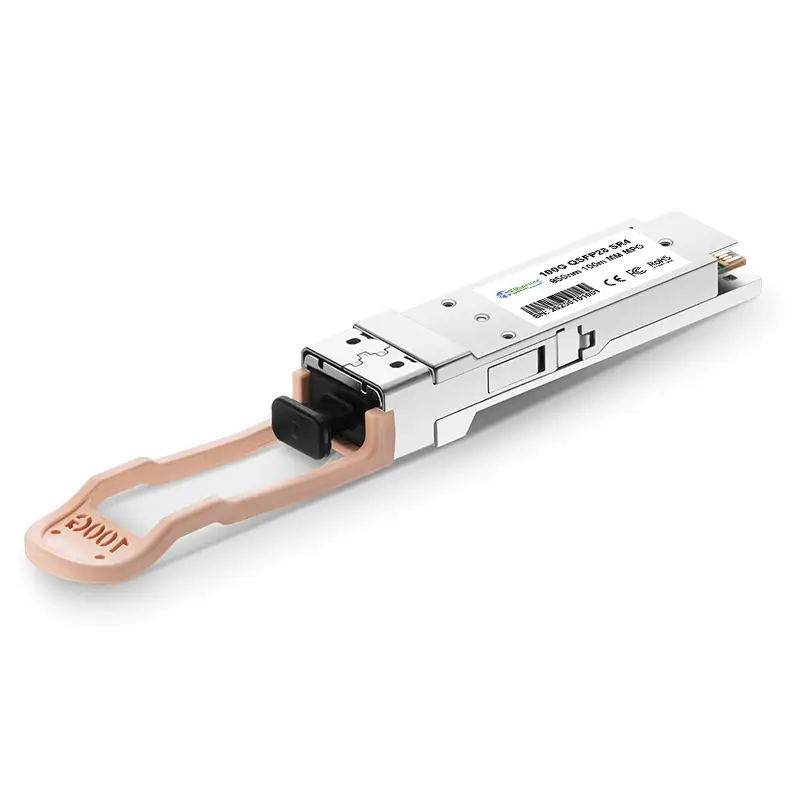

100G QSFP28 optical module is a type of fiber optic module used for data transmission, capable of achieving a data rate of 100 Gigabits per second (Gbps).It includes variants such as SR4, SWDM4, CWDM4, LR4, ER4, ZR4, etc. The term QSFP28 stands for Quad Small Form-factor Pluggable Plus 28, indicating it has four channels and each channel can achieve a speed of up to 28Gbps. These optical modules are widely used in data centers, telecommunications networks, cloud computing, and other fields to support rapid exchange of large amounts of data over both short and long distances.

Features

● Support line rates from 103.125 Gb/s

● Lane bit rate 25.78 Gb/s 100GE

● High speed I/O electrical interface (CAUI-4);

● I2C interface with integrated Digital Diagnostic monitoring;

● Compliant with QSFP28 MSA

● Support OTU4/Ethernet CAUI-4

● Single +3.3V power supply

● Complies with EU Directive 2015/863/EU

Application

● Data Center interconnections

● Server-Server Clusters, Super-computing interconnections

● 100GBASE-SR4 Ethernet

● 100GBASE-LR4 Ethernet

● 100GBASE-ER4 Ethernet

● 100GBASE-ZR4 Ethernet

● 100G Datacom& Telecom connections
