Overview

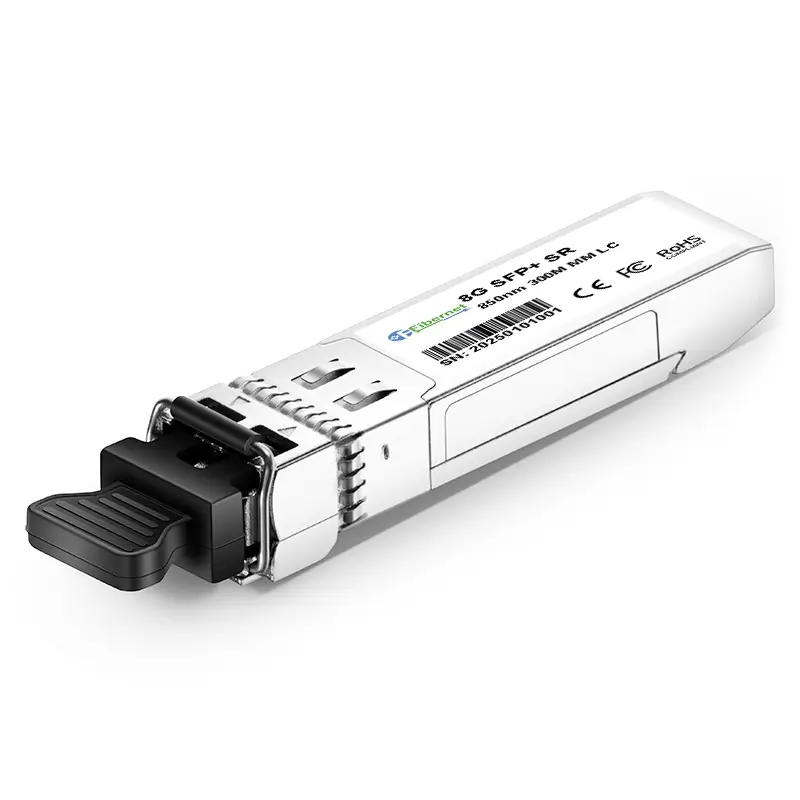

8G SFP+ SR optical transceiver is a cost-effective, short-reach solution designed for 8.5Gbps Fibre Channel and 10GbE applications, supporting transmission distances of up to 300 meters over multi-mode fiber (MMF). Operating at an 850nm wavelength, this LC-interface module is ideal for high-speed connectivity within data centers, enterprise LANs, and storage area networks (SANs) requiring reliable, low-latency communication over short distances.

Compliant with SFP+ MSA, IEEE 802.3ae, and Fibre Channel standards, it ensures seamless compatibility with existing network infrastructure. The transceiver features low power consumption, a commercial temperature range (0°C to 70°C), and digital diagnostics monitoring (DDM/DOM) for real-time performance tracking. Its hot-swappable design simplifies installation and maintenance, while the compact form factor supports high-density deployments.

Optimized for multi-mode fiber, this module delivers plug-and-play simplicity and robust signal integrity in rack-to-rack or intra-building scenarios. Combining affordability with high performance, the 8G SFP+ SR transceiver is a versatile choice for upgrading legacy systems or building efficient, high-bandwidth optical networks in space-constrained environments.

Features

Optical interface compliant to IEEE 802.3ae

Electrical interface compliant to SFF-8431

Hot Pluggable

850nm VCSEL transmitter, PIN photo-detector

Maximum link length of 300m on 2000MHz/km MMF

Operating case temperature: 0 to 70 °C

Low power consumption

All-metal housing for superior EMI performance

Advanced firmware allow customer system encryption information to be stored in transceiver

Cost effective SFP+ solution, enables higher port densities and greater bandwidth

RoHS6 compliant (lead free)
