Overview

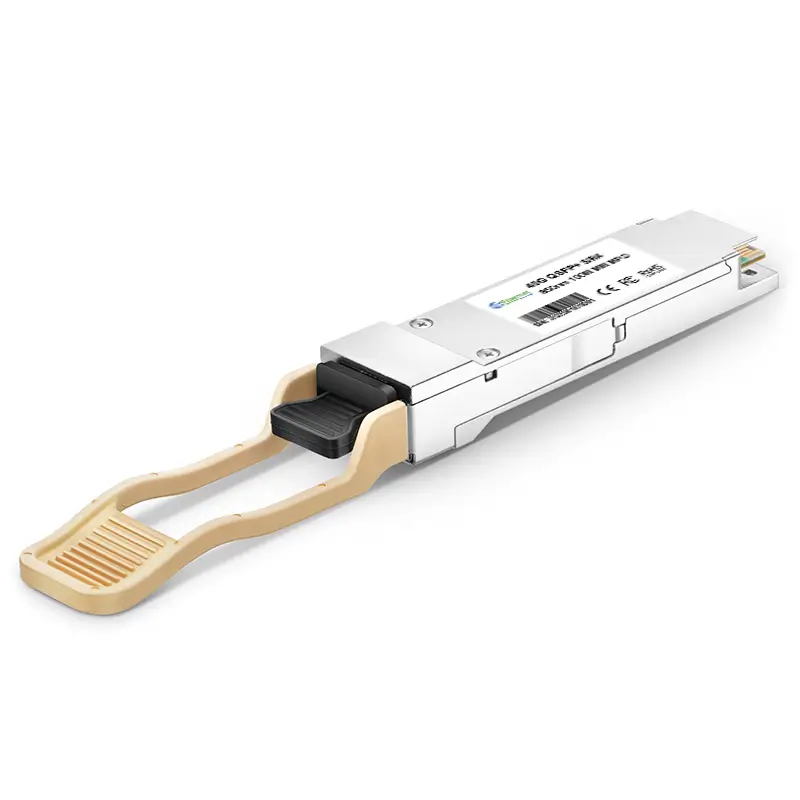

40G QSFP+ SR4 100M MPO Optical Transceiver is a high-performance, compact module designed for short-range data communication in high-speed networks. Compliant with IEEE 802.3ba and QSFP+ MSA standards, it supports 40G Ethernet, InfiniBand, and Fibre Channel applications. Utilizing four parallel 10Gbps lanes with an MPO-12 connector, it delivers an aggregate bandwidth of 40Gbps over OM3/OM4 multimode fiber (MMF) with a reach of up to 100 meters.

Ideal for data centers, enterprise networks, and high-performance computing environments, this transceiver enables efficient connectivity in switches, routers, and storage systems. Its low-power design and hot-swappable capability ensure seamless integration and reduced operational costs. Built with advanced digital diagnostics monitoring (DDM), it offers real-time performance tracking for enhanced network reliability.

The 40G QSFP+ SR4 combines robust performance, energy efficiency, and plug-and-play simplicity, making it a cost-effective solution for modern 40G short-reach optical interconnects.

Features

High Channel Capacity: 40 Gbps per module

Up to 11.1Gbps Data rate per channel

Maximum link length of 100m links on OM3 multimode fiber Or 150m links on OM4 multimode fiber

High Reliability 850nm VCSEL technology

Electrically hot-pluggable

Digital diagnostic SFF-8436 compliant

Case operating temperature range:0°C to 70°C

Power dissipation < 1.5 W

How to choose 40G QSFP+ optical module？

40G QSFP+ optical module refers to the transmission rate of 40G, and the package of this optical module is QSFP+. 40G optical module has four independent full-duplex transceiver channels, each channel of the transceiver rate of 10G, thus forming a 40G transmission rate, X-Fibernet will introduce the 40G QSFP + optical module what types are there.

IEEE organization for 40G QSFP + optical module to develop a variety of transmission protocols, common are: 40G BASE-SR4, 40G BASE-LR4, 40G BASE-BiDi, 40G BASE-ER4, etc., the interface type of these optical modules, transmission distance, working wavelength are not the same.

40G SR4, 40G ER4? and 40G BIDI are multimode optical modules that require the use of OM3/OM4 fiber optic patch cords for transmission, which are suitable for equipment interconnection within the data center due to the short transmission distance; 40G SR4, 40G eSR4 and 40G PSM4 interface types are MPO interfaces, this type of interface can not only achieve 40G link connection, but also use MPO-LC patch cord to achieve 40G link and 10G link connection; LX4, LR4, ER4 interface type is LC, need to be used with single-mode fiber OS2 patch cord, the transmission distance is more than 2KM, the farthest is 40KM.
