Overview

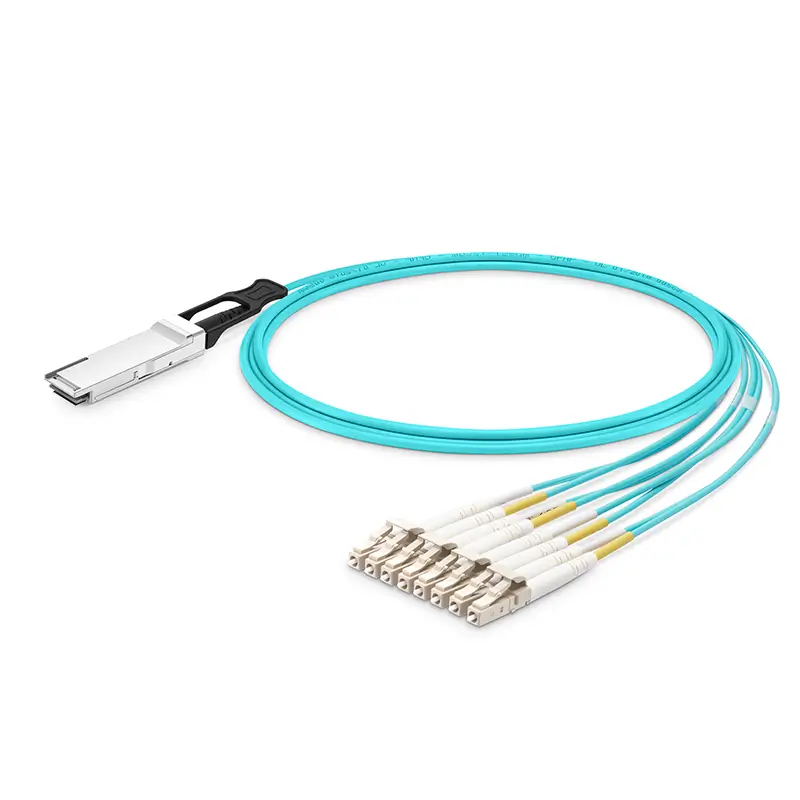

40G QSFP+ to 4×LC Active Optical Cable (AOC) is a versatile, high-density solution designed to split a 40G QSFP+ port into four independent 10G channels via LC duplex connectors. Tailored for data centers, enterprise networks, and telecom environments, this AOC ensures efficient 40G-to-10G migration by seamlessly integrating with existing LC-based fiber infrastructure. It supports transmission distances of up to 100 meters using OM3/OM4 multimode fiber, delivering reliable, low-latency performance for high-speed applications like cloud services, storage systems, and network aggregation.

The cable combines plug-and-play simplicity with a lightweight, flexible design, eliminating the need for separate transceivers and reducing deployment costs. Its optical architecture ensures superior EMI resistance and lower power consumption compared to copper alternatives, while LC connectors enable easy integration with patch panels and high-density setups. Built for durability and scalability, this AOC offers a cost-effective, future-ready solution for optimizing 40G/10G network performance and connectivity flexibility.

QSFP+ AOC end:

Compliant to the 40GBASE-SR4 and XLPPI

Specification per IEEE 802.3ba-2010 and supporting

40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications

Compliant to the industry standard SFF-8436

QSFP+ Specification

Power Level 1: Max Power < 1.5 W

Operate at 10.3125 Gbps per channel with 64b/66b

encoded data for 40GbE application and at 10 Gbps

with 8b/10b compatible encoded data for 40G-IB-QDR application

Each 4× Double LC Connect end:

With double LC Single Mode connect, or double LC Muti-mode connect

Active Optical Cable Assembly:

0 to 70 C degree case temperature operating range

Proven High Reliability 850 nm technology: Rayoptek VCSEL transmitter and

Rayoptek PIN receiver

Hot pluggable for ease of servicing and installation

Two Wire Serial interface

Utilizes optical fiber for high density and thin, lightweight cable management
