Overview

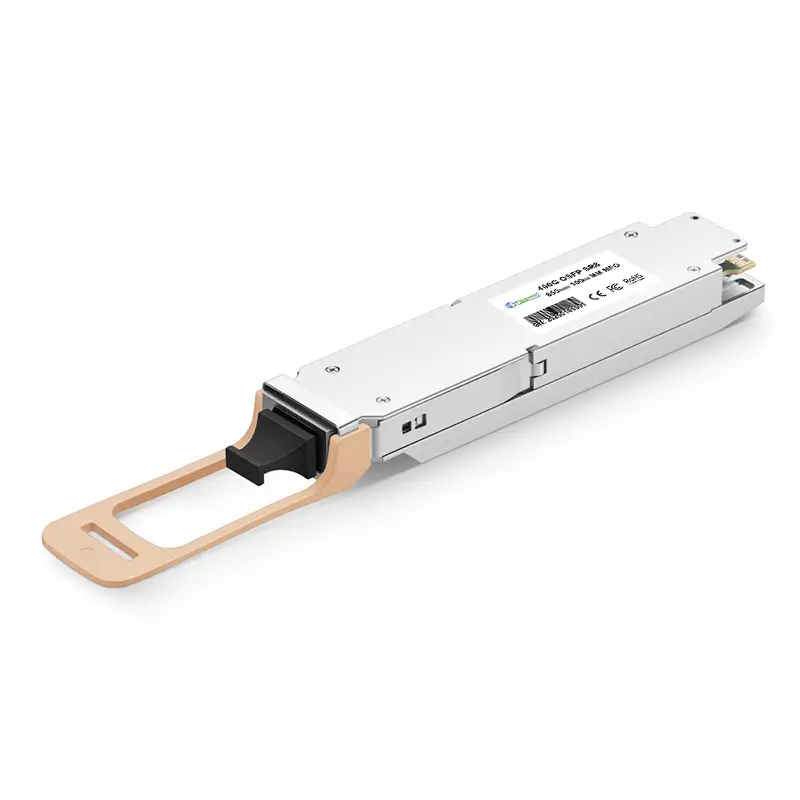

400G OSFP is a novel high-speed data transmission standard for optical modules. It boasts 4x100G and 8x50G high-speed electrical channels, an integrated heat sink to enhance cooling efficiency, increased transmission speed, reduced power consumption, and a more compact design. This makes it ideal for telecom markets, data center networks, and high-performance computing applications.

Features

● Up to 106.25 Gbps data rate per channel by PAM4 modulation

● Support 400GAUI-4 electrical interface

● Integrated 850nm VCSEL array and PD array

● Dual MPO-16

● DDM function implemented

● Hot-pluggable

● Single +3.3V power supply

Application

● Data Center

● 100 Gigabit Ethernet

● Switch to Switch interface

● Router/Server interface

OSFP MSA compliant

8 parallel laneson 850nm center wavelength

Compliant to IEEE802.3bs Specification

Up to 100m transmission on multi-mode fiber(MMF)OM3 with FEC

Operating case temperature:0 to 70℃

8x53.125Gb/s electrical interface(400GAUI-8)

DataRate 53.125Gbps(PAM4)per channel.

Maximum power consumption 12W

MPO-16 connector

RoHS compliant
