Overview

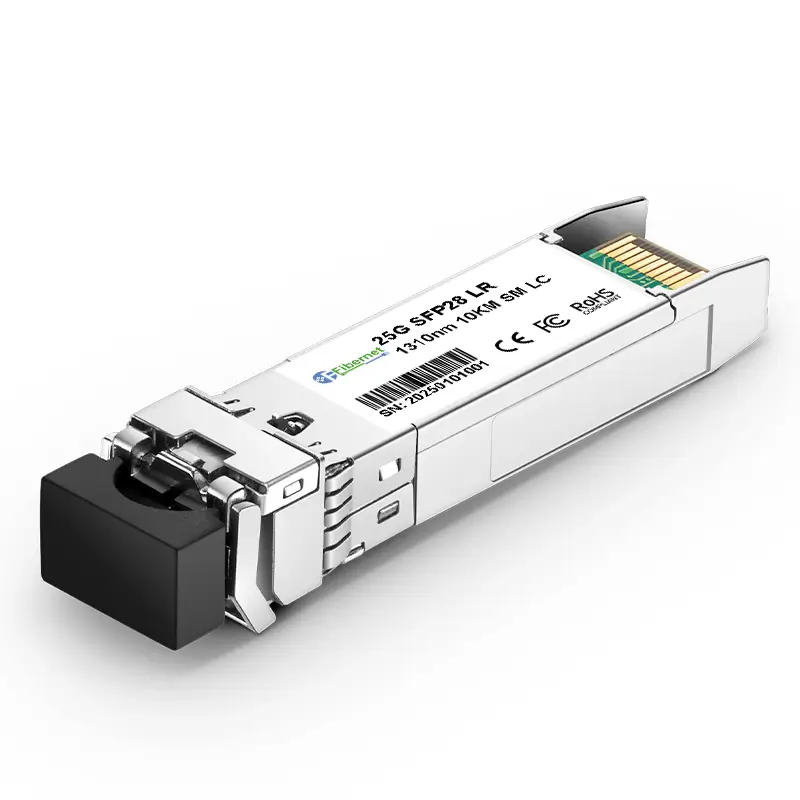

25G SFP28 LR 1310nm 10KM LC Optical Transceiver is a high-performance module designed for long-range data transmission in next-generation networks. Compliant with IEEE 802.3cc and SFP28 MSA standards, it delivers 25Gbps throughput using a 1310nm DFB laser over single-mode fiber (SMF), achieving reliable transmission distances of up to 10 kilometers. The LC duplex connector ensures seamless compatibility with existing fiber infrastructure, enabling cost-effective upgrades and simplified deployments.

Ideal for data center interconnects, enterprise backbone networks, and telecommunications, this transceiver supports high-speed connectivity in switches, routers, and storage systems. Its compact SFP28 form factor and hot-swappable design facilitate high-density installations, while integrated digital diagnostics monitoring (DDM) provides real-time tracking of temperature, voltage, and optical performance for enhanced reliability and proactive maintenance.

With low power consumption, robust error-free transmission, and extended reach, the 25G SFP28 LR transceiver offers a scalable, future-proof solution for 25G Ethernet and emerging high-speed applications, ensuring optimal performance in bandwidth-intensive, long-haul environments.

Feature

Hot-pluggable SFP28 form factor

Supports 25Gbps data rate

Maximum link length of 10km

1310nm DFB laser and PIN photo-detector

Internal CDR on both Transmitter and Receiver channel

Duplex LC receptacle

Single 3.3V power supply

Power dissipation < 1.5W

Digital diagnostics functions are available via the I2C interface

RoHS-6 compliant

Commercial case temperature range: 0°C to 70°C
