Overview

200G optical modules usually come in two packaging types: QSFP56 and QSFP-DD.

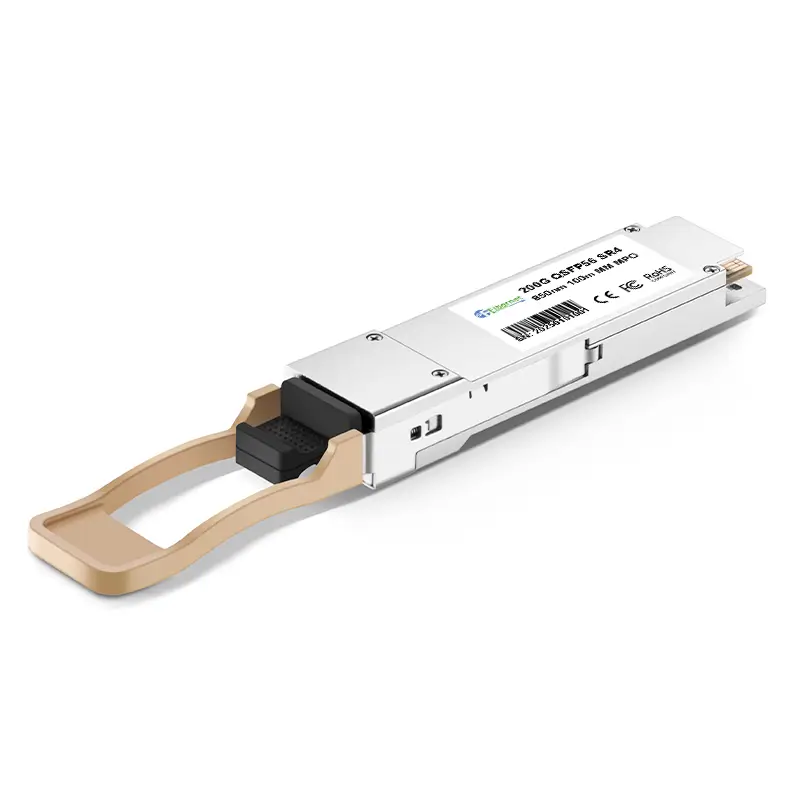

QSFP56: QSFP56 is a type of small form-factor pluggable optical module with four channels, and each channel can achieve a transmission rate of up to 56 Gbps.Therefore, when four channels are combined, a total transmission rate of 200 Gbps can be achieved. X-Fibernet 200G QSFP56 optical modules include SR4, FR4, LR4, ER4.

QSFP-DD: QSFP-DD is an evolved version of QSFP with higher density, capable of supporting double the number of data channels. Therefore, each QSFP-DD module can support a higher total bandwidth. Typically, QSFP-DD can support a transmission rate of up to 56 Gbps per channel,so one module can achieve a transmission rate of up to 400 Gbps. X-Fibernet200G QSFP-DD optical modules include SR8, etc.

Features

● Compliant with 200G-SR4/SR8/FR4/ER4 optical specifications

● 4x53.125Gb/s electrical interface (200GAUI-4)

● Single +3.3V power supply

● Case temperature range: 0 ~ +70℃

● RoHS complaint

Application

● Data Center

● 200 Gigabit Ethernet
